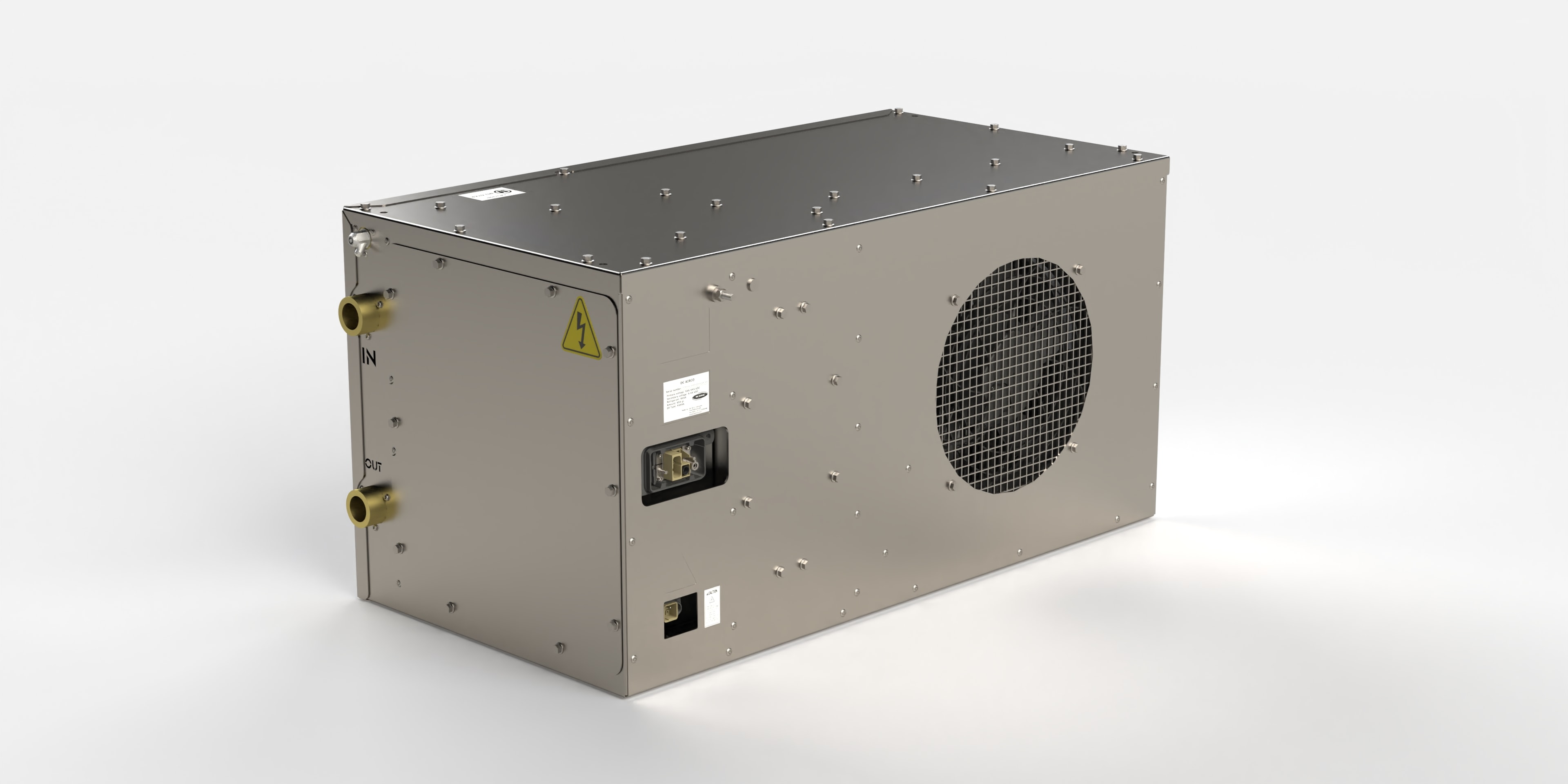

DC14005 - Battery Cooler-chiller Liquid to Air 400VAC

DC Airco introduces the DC 14005 Liquid-Air Battery Thermal Management System.

DC Airco is proud to announce the launch of the DC 14005, a state-of-the-art EN 45545-2 HL3 railway cooler, explicitly designed for battery thermal management. This innovative system ensures that batteries are kept at an optimum temperature, maximising their lifespan. The DC 14005 eliminates the need for a double cooling circuit with its efficient water-air system, dissipating heat from the battery directly into the environment.

Main features:

• Voltage Range: 400 VAC (3 phase, 50-60 Hz)
• Control Voltage: 24 VDC
• Capacity: Controlled 2-6 kW
• Design: Rugged
• Components: Flow sensor and coolant filter inside
• Certifications: Railway certified, energy-efficient cooling, EN 61373, Cat 1 – Class B, EN 45545-2, HL3, EN 50121-3-2
