**Thermal management for batteries and HVAC for operators/passengers:**
Driverless vehicles, autonomous shuttles, self-driving buses and electric trucks.

**Designed and manufactured as:**
Rooftop air conditioners, split air conditioners and chillers.

**To run on different battery power sources, such as:**
Nominal voltages: 24 Vdc, 48 Vdc, 230 Vac, 400 Vac, 420 Vdc, 750 Vdc, 800 Vdc, 850 Vdc
Other voltage ranges are also possible, feel free to contact for what it possible.

Liquid to Liquid

Air to Liquid

Heater

|  Parameter  | Value  |
| -------- | ------- |
| Cooling capacity¹ | 6,9 kW   |
| COP cooling¹ | 2,4     |
| Heating capacity² | 5,9 kW    |
| COP heating² | 3,6    |
| Power consumption   | 0–3,4 kW    |
| Voltage range 350 Vdc model    | 210–480 Vdc    |
| Voltage range 630 Vdc model    | 400–850 Vdc    |
| Control voltage   | 9–40 Vdc    |
| Control system    | CAN 2.0A/ B, J1939, CANopen, remote on/ off or self-controlled    |
| Flow side A    | 18–30 l/min    |
| Flow side B    | 25–40 l/min    |
| Liquid connections    | G¾” male   |
| Size   | 251 x 346 x 344 mm (L x W x H)    |
| Refrigerant    | R134a _non-flammable A1 refrigerant- allowed to be used in EU for mobile applications for cooling batteries and equipment. 1234yf on request._    |
| Weight    | 21,5 kg    |
| Colour | Bare aluminium |
| Material | Aluminium |

¹ Liquid A in 30 °C 20 l/min, liquid B1 in 35 °C 30 l/min.
² Liquid A in 23 °C 20 l/min, liquid B1 in 15 °C 30 l/min.

Redefining Battery Thermal Management System. Our compact reversible heat pump, designed for precision battery thermal management, ensures optimal temperatures for extended lifespan and utilises a cutting-edge liquid-liquid system. It ingeniously transforms your battery's heat into a valuable resource.

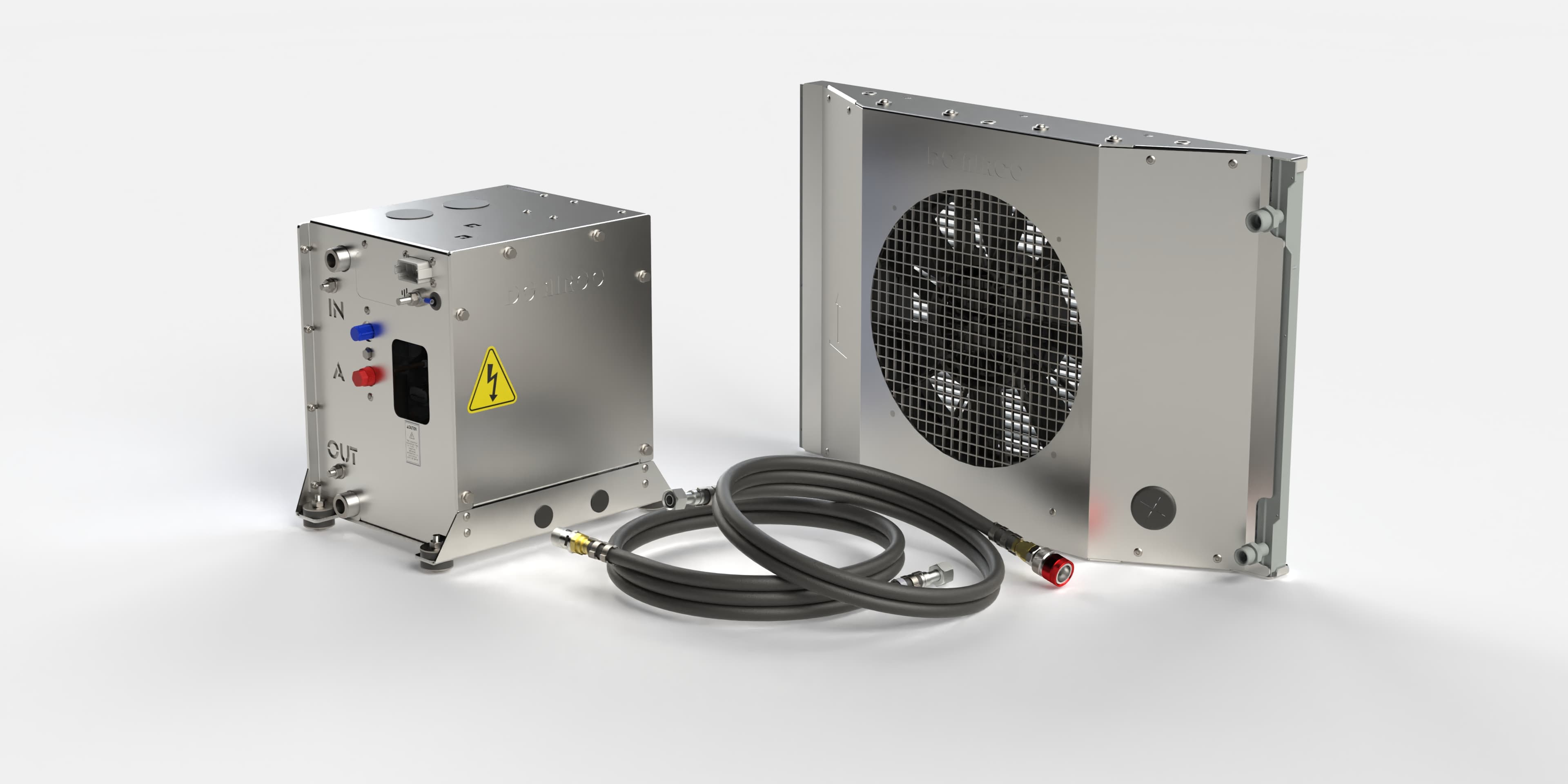

DC6001

12 Vdc

24 Vdc

350 Vdc

630 Vdc

|  Parameter  | Value  |
| -------- | ------- |
| Cooling capacity¹ | 6,9 kW |
| COP cooling¹ | 2,6 |
| Power consumption   | 0–3,4 kW    |
| Voltage range 350 VDC model    | 210–480 Vdc    |
| Voltage range 630 VDC model    | 400–850 Vdc    |
| Control voltage    | 9–40 Vdc    |
| Control system    | CAN 2.0A/ B, J1939, CANopen, remote on/ off or self-controlled    |
| Flow side A    | 18–30 l/min    |
| Liquid connections    | G¾” male   |
| Size   | 251 x 346 x 344 mm (L x W x H) without condensor   |
| Refrigerant    | R134a _non-flammable A1 refrigerant- allowed to be used in EU for mobile applications for cooling batteries and equipment. 1234yf on request._   |
| Weight    | 19 kg (body without condensor)    |
| Colour | Bare aluminium |
| Material | Aluminium |

¹ Liquid A in 30 °C 20 l/min, outside ambient temperature 35 °C.

DC6030

|  Parameter  | Value  |
| -------- | ------- |
| Heating capacity¹ | 8 kW |
| Flow rate coolant | 5–30 l/min
| Voltage range | 400–850 Vdc |
| Secundairy voltage | 9–36 Vdc |
| Controlled | CAN 2.0B (500 kb/s)
| Rating | IP67 |
| Size unit | 311 x 153 x 106 mm (L x W X H) |
| Weight | 3,2 kg |
| Protection | Over temperature, over current and under-voltage protection |
| Operating temperature | -40 °C to 80 °C |

¹ 15 l/min.

This compact electric liquid heater is engineered for efficient thermal management in both vehicle and industrial systems. It is designed to integrate seamlessly with existing control systems via CAN 2.0B communication.
The unit features built-in protection against over-temperature, overcurrent, and under-voltage conditions, ensuring safe and reliable operation even in harsh or demanding environments. Its versatile design allows for flexible installation and operation, making it suitable for a wide range of applications where precise temperature control is essential.

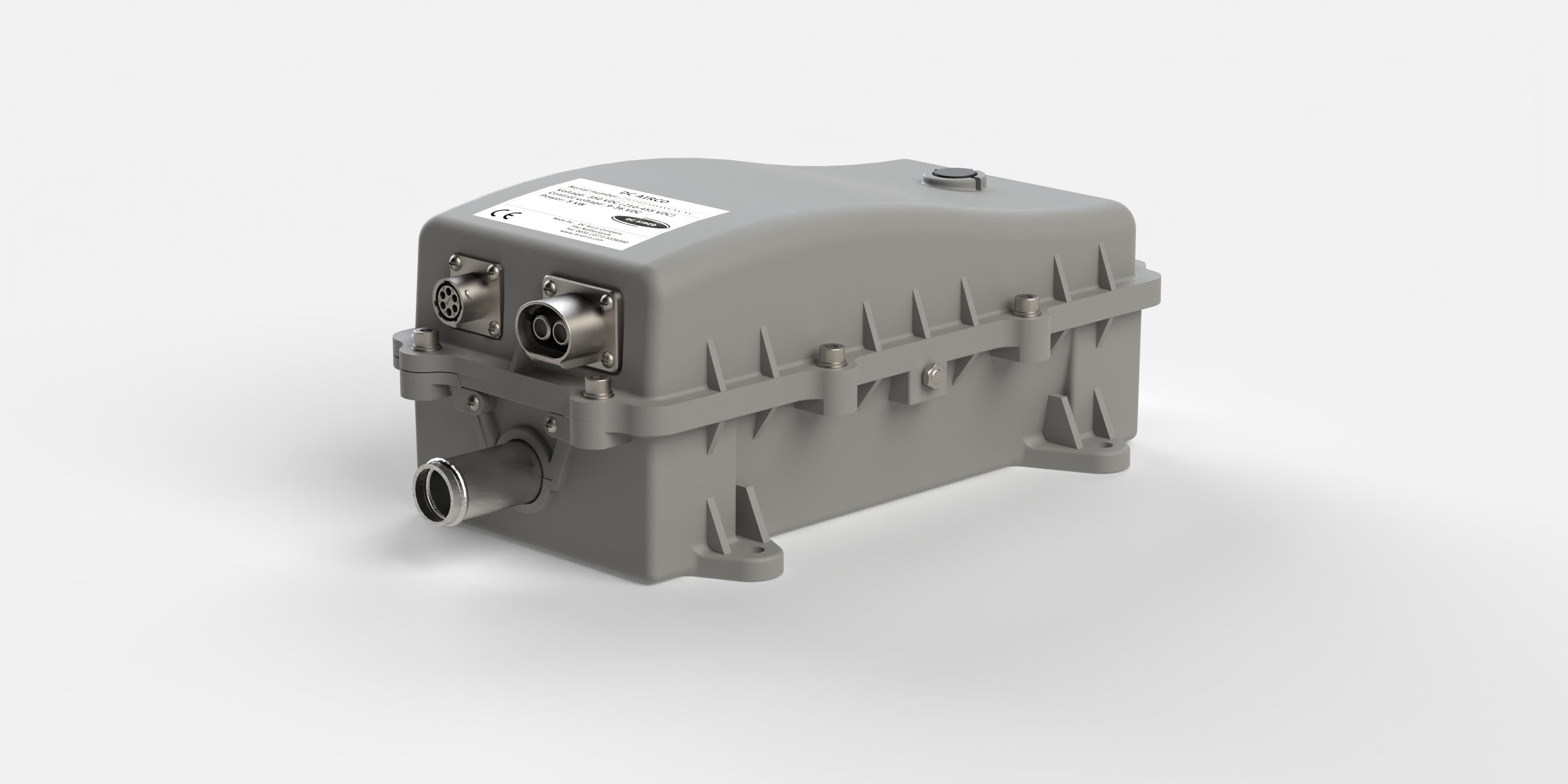

190139

600 Vdc

|  Parameter  | Value  |
| -------- | ------- |
| Heating capacity¹ | 5 kW |
| Flow rate coolant | 5–30 l/min
| Voltage range | 210–455 Vdc |
| Secundairy voltage | 9–36 Vdc |
| Controlled | CAN 2.0B (500 kb/s)
| Rating | IP67 |
| Size unit | 311 x 153 x 106 mm (L x W X H) |
| Weight | 3,2 kg |
| Protection | Over temperature, over current and under-voltage protection |
| Operating temperature | -40 °C to 80 °C |

¹ 15 l/min.

This compact 5 kW electric liquid heater is engineered for efficient thermal management in vehicle and industrial systems. It operates across 210–455 VDC high voltage and 9–36 VDC low voltage, with seamless integration via CAN 2.0B communication. With a 5–30 l/min flow range, IP67 protection, and built-in safeguards against over-temperature, overcurrent, and under-voltage, the unit ensures reliable performance in harsh environments.
