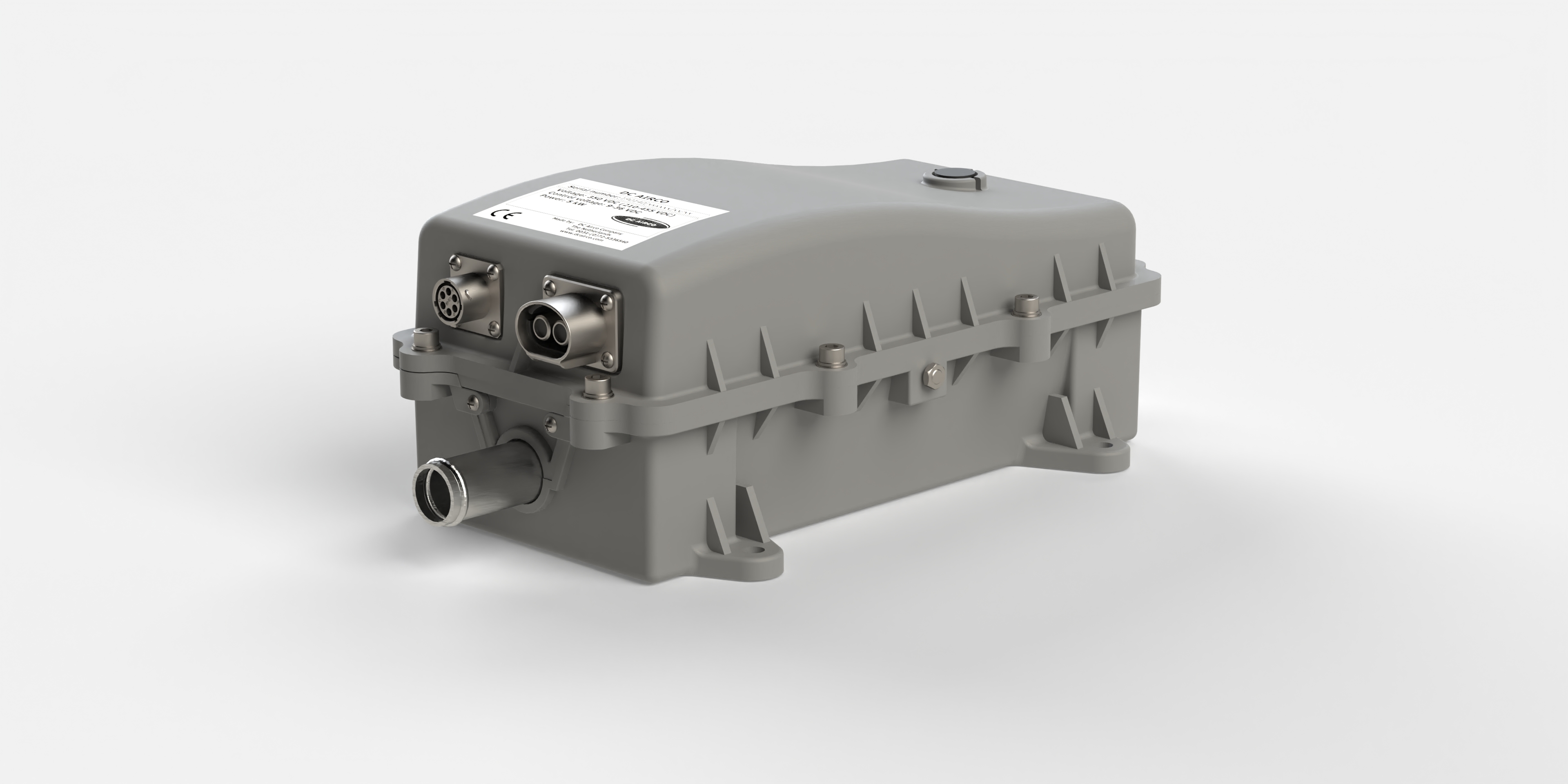

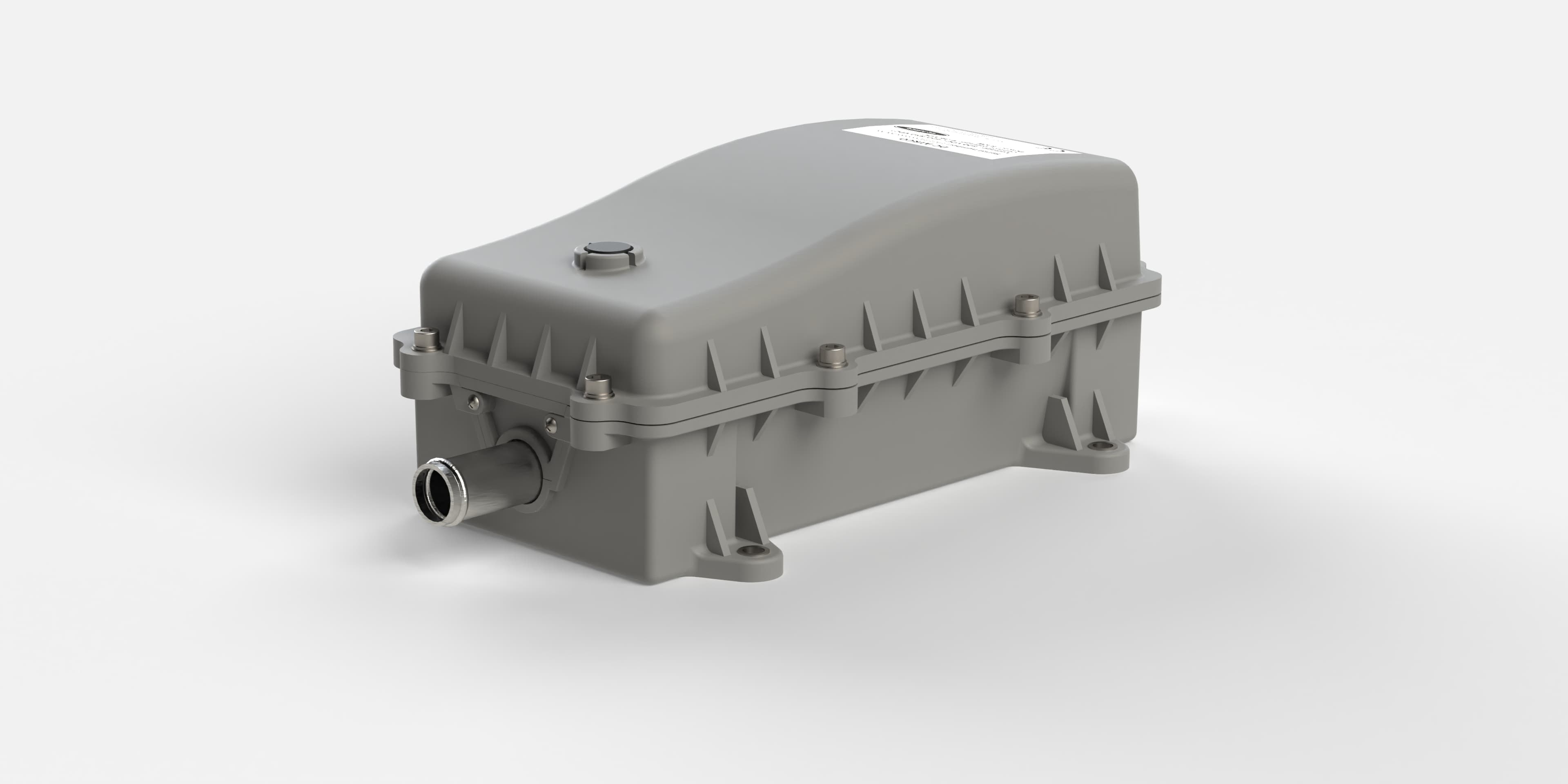

This compact 5 kW electric liquid heater is engineered for efficient thermal management in vehicle and industrial systems. It operates across 210–455 VDC high voltage and 9–36 VDC low voltage, with seamless integration via CAN 2.0B communication. With a 5–30 l/min flow range, IP67 protection, and built-in safeguards against over-temperature, overcurrent, and under-voltage, the unit ensures reliable performance in harsh environments.
Monoblock
Heater
0–5 kW
Under development, files will be available soon.
| Parameter | Value |
|---|---|
| Heating capacity¹ | 5 kW |
| Flow rate coolant | 5–30 l/min |
| Voltage range | 210–455 Vdc |
| Secundairy voltage | 9–36 Vdc |
| Controlled | CAN 2.0B (500 kb/s) |
| Rating | IP67 |
| Size unit | 311 x 153 x 106 mm (L x W X H) |
| Weight | 3,2 kg |
| Protection | Over temperature, over current and under-voltage protection |
| Operating temperature | -40 °C to 80 °C |
¹ 15 l/min.
